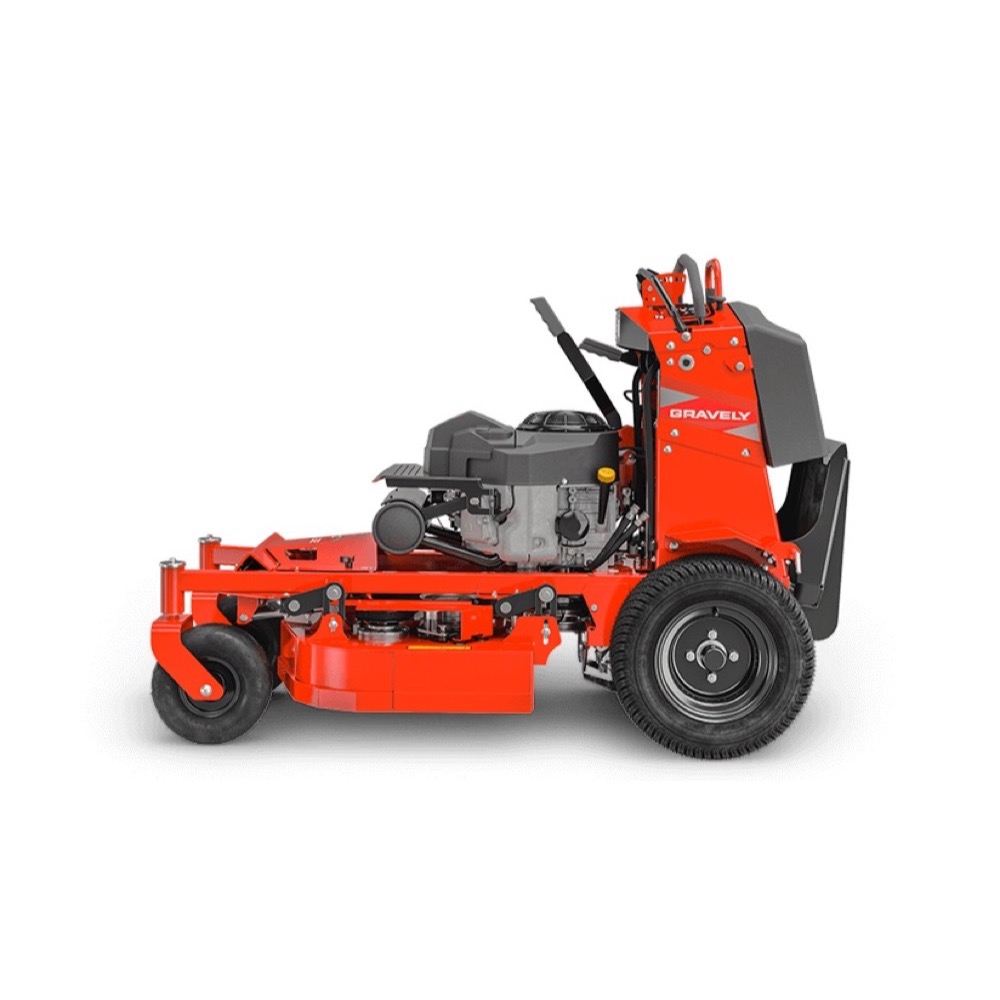

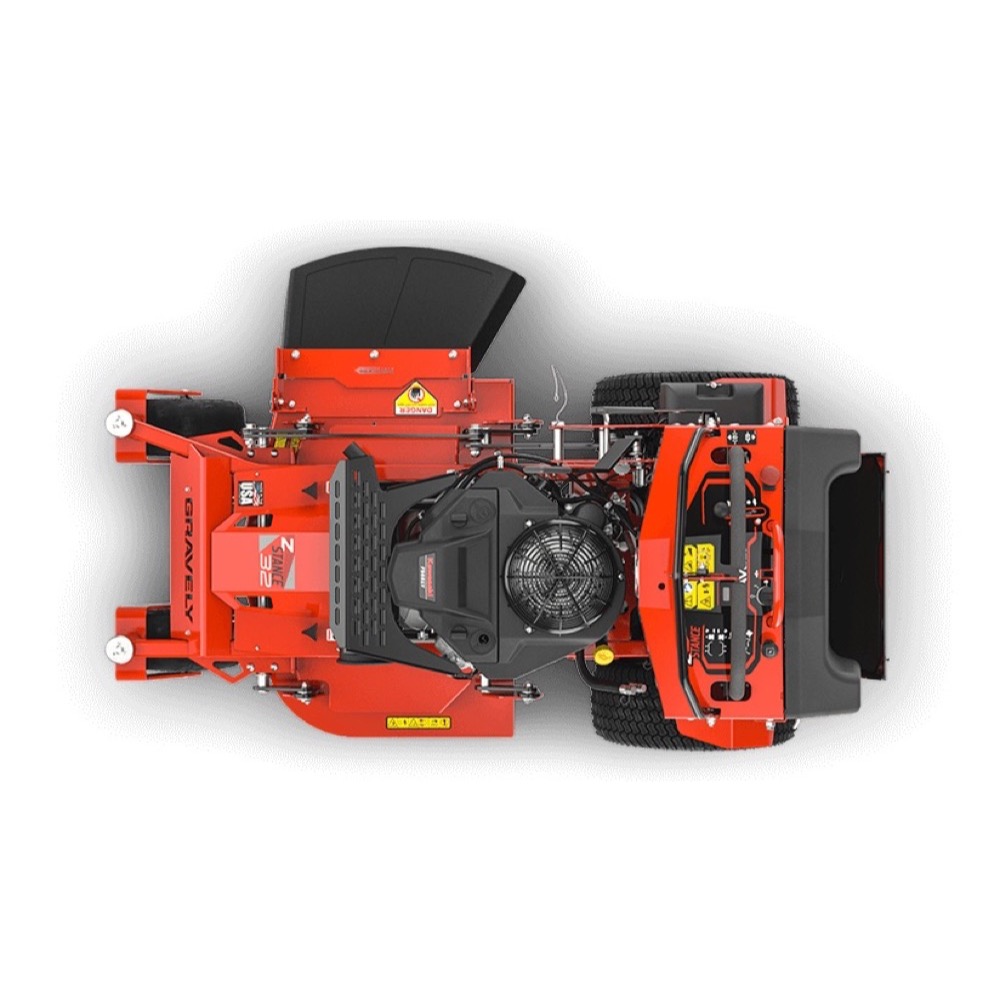

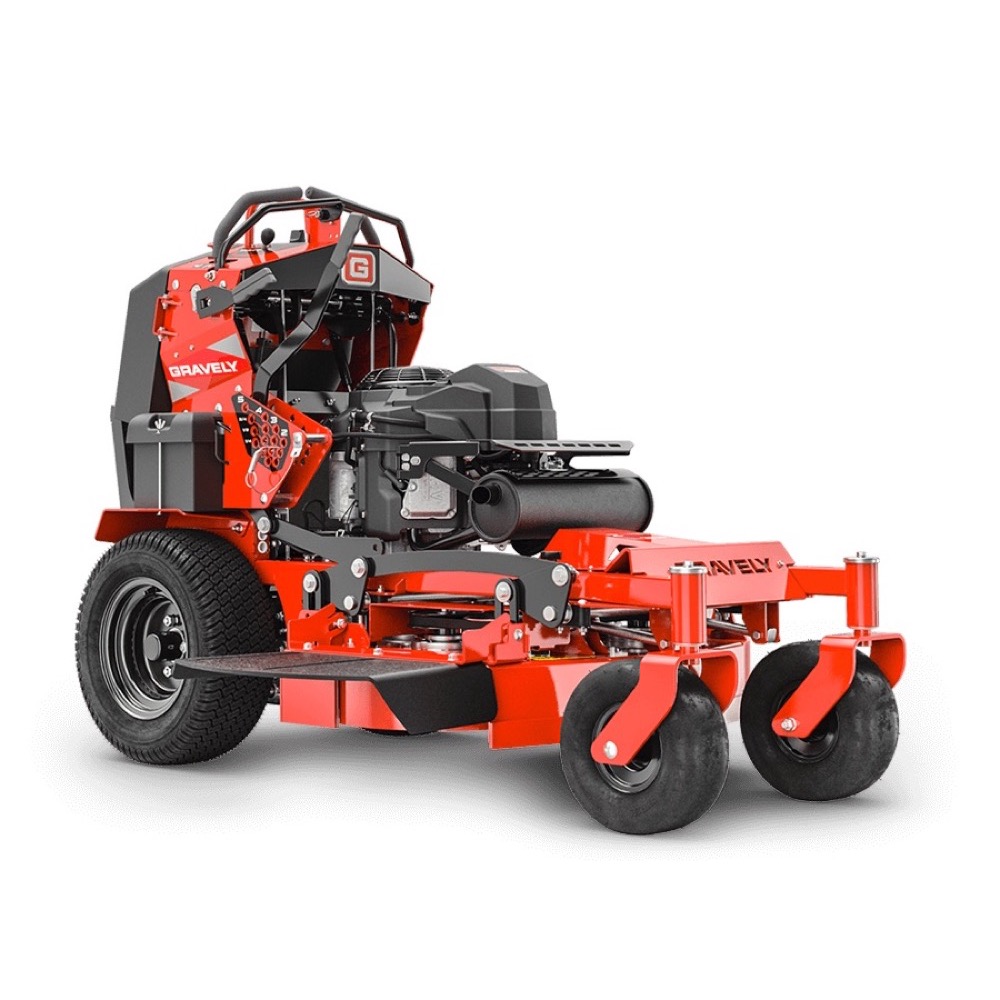

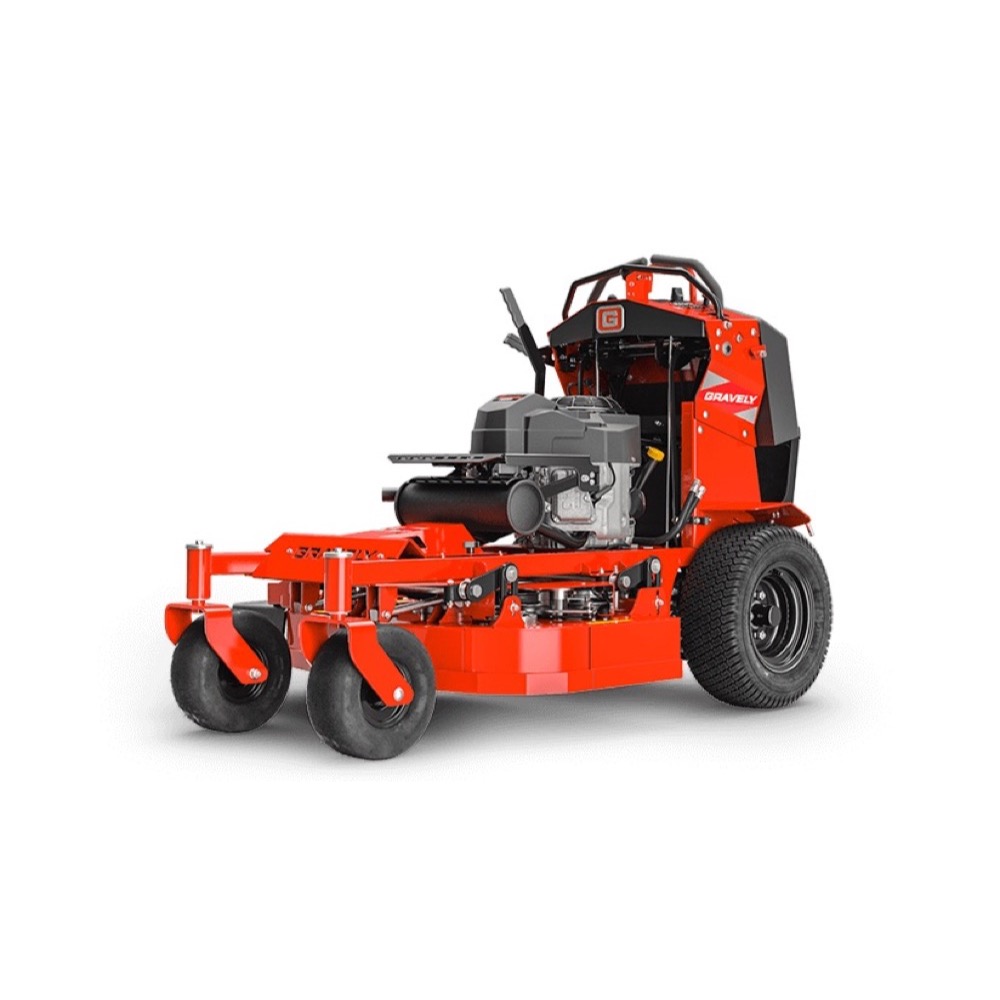

Gravely Z-Stance Zero Turn Stand On Mower

SKU:

Price

$13,999.00
Ex GST: $12,726.36

Available From

No Macksville
Yes Newcastle - Call to check availability
Yes Rutherford - Call to check availability

Not Available Online Or At Your Local Store?


Find your Local Dealer…

You’ll ride with pride as you deliver that perfect Gravely cut on the Z-Stance. This powerful entry level commercial stand-on mower is easy to maneuver and a breeze to maintain.
It’s 32” compact deck makes quick work of a commercial or a gated backyards.
You take a stand for comfort, ingenuity, and durability when you’re on a Z-Stance.

FEATURES

  • Kawasaki premium grade 18.5hp V-twin engine.
  • Operator comfort features exceptional operator positioning for all-day comfort.
  • Added efficiency – ingenious design allows quick and easy access to the fuel tank.
  • Adjustable Cruise Bar - allows the operator to limit and expand the unit’s maximum speed in tight working environments .
  • Easy Hiehgt Adjuster – Simple lever control for fast adjustments
  • X-FACTOR® 2 deck – 7-gauge steel to deliver years of solid performance.
  • Compact stance perfect for tight spaces.
  • Offers 12 cutting positions, ranging from 50mm - 127 mm.
  • Shock-absorbed operator platform which responds to driver’s weight.
  • Heavy-duty fabricated frame.
Basic Information
Designed For Professionals, Government
Powered By Petrol Engine
Engine Specifications
Displacement (cc) 603cc
Engine Brand Kawasaki
Engine Model FS600V - 603cc OHV V-Twin
Power Output (kW / hp) 13.5 / 18.5
Fuel System Carburettor
Engine Type 4-Stroke
Lubrication Fully pressurised automotive-style oil pump w/spin-on oil filter
Drive System
Drive System Hydrostatic - Lever Control
Transmission Dual Hyro-Gear™ ZT 3100
Cruise Control Yes
Diff Lock n/a
Max. Forward Speed (km/h) 11.3
Max. Reverse Speed (km/h) 4.8
Chassis
Chassis Type Robotically welded frame assembly
Frame -
R.O.P.S. Frame No
Bumper Bar -
Operation
PTO Clutch Electronic fingertip engagement allows you to engage & disengage the mowing deck saving you time and energy
Brakes Parking Brake Lever
Seat n/a
Other Specifications
Front Tyres 11.00 x 5.00
Rear Tyres 20.00 x 6.50
Fuel Tank Capacity 17 Litres
Mowing Deck
Cutting Width (cm / Inches) 82 / 32
Deck Build 7-gauge, floating, fabricated
Cutting Height Adjustments 2.0 Inches to 5.0 Inches - 13 position
Anti Scalping Wheels None
Mulch Kit Not Available
Deck Spindles 2
Deck Pulleys Split steel spindle pulley
Deck Attach/Removal Tools Required
Deck Wash Port No
Warranty
Machine (Domestic Use) 4 Years / 500 Hours
Machine (Commercial Use) 4 Years / 500 Hours
Engine (Domestic use) 3 Years
Engine (Commercial Use) 3 Years
