Gravely Pro-Turn 500 Zero Turn Mower
- SKU:
Price
$23,599.00
Ex GST: $21,453.64Available From
Macksville
Newcastle - Call to check availability Rutherford - Call to check availabilityNot Available Online Or At Your Local Store?

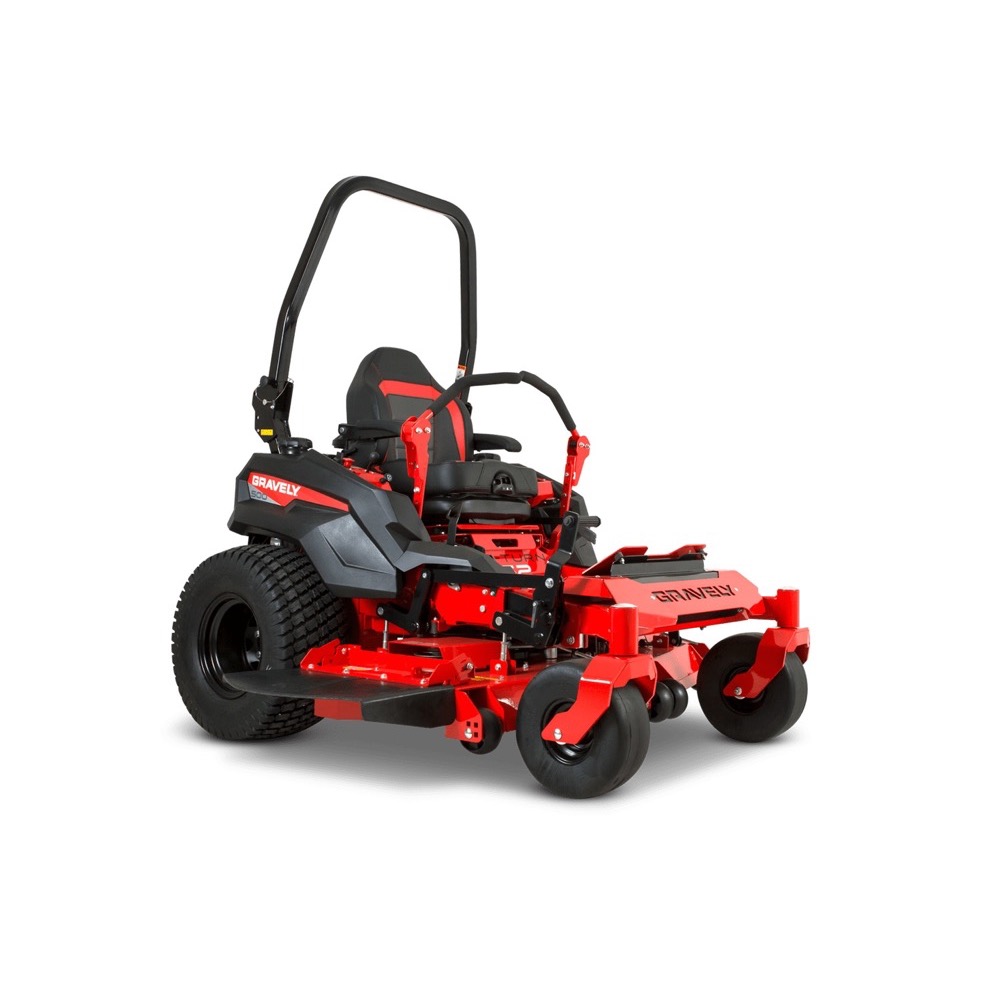

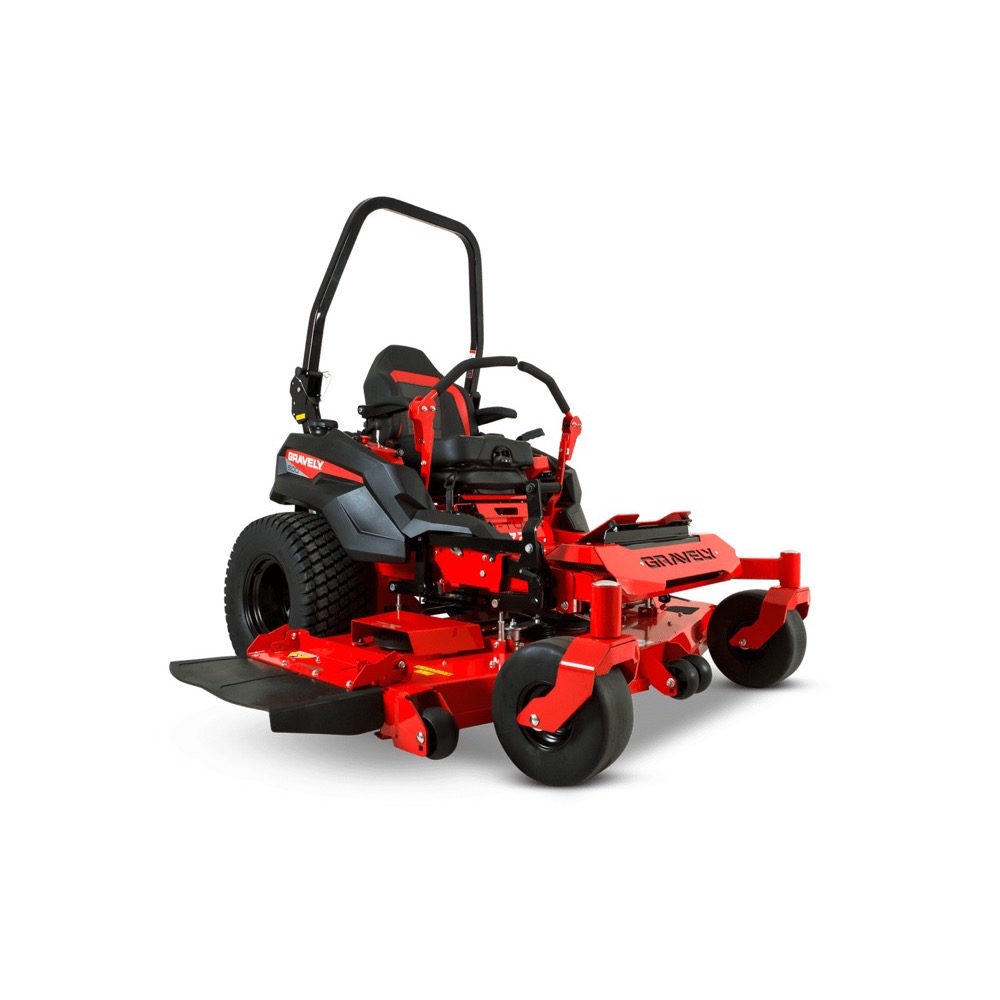

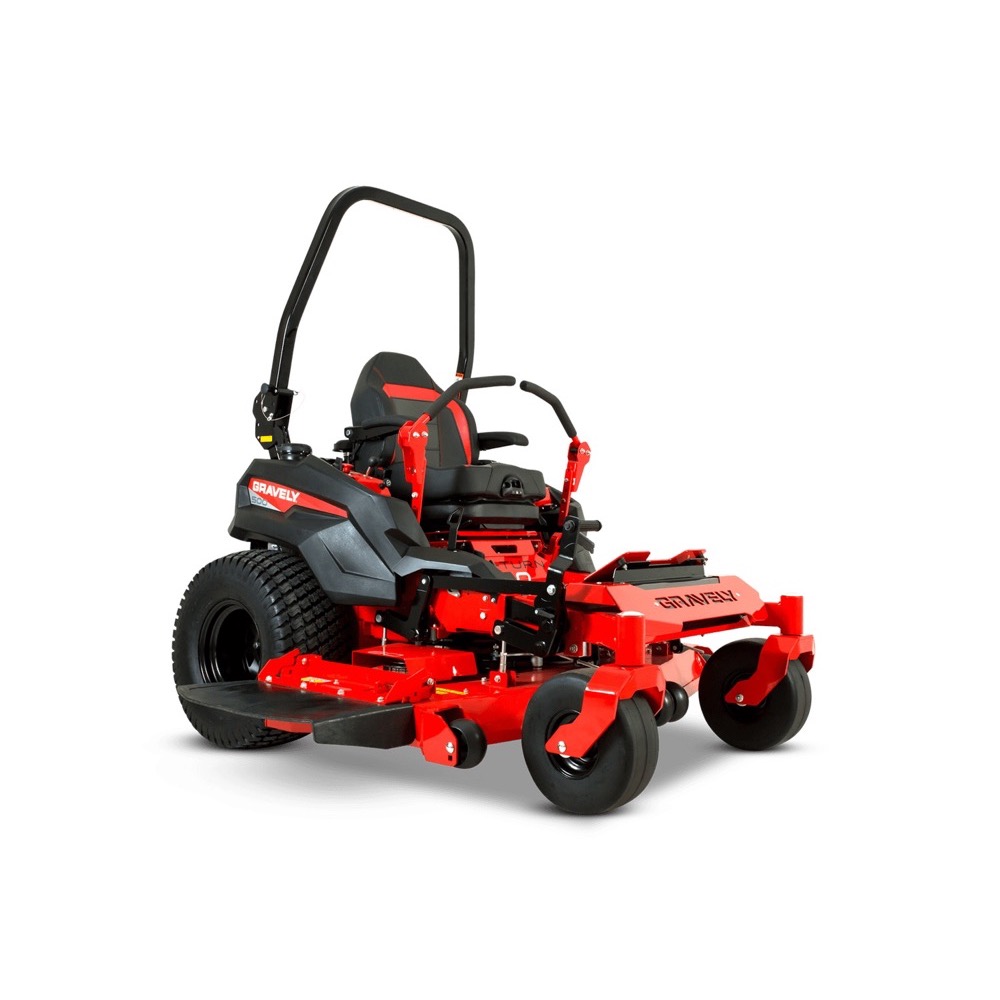

This is the Pro-Turn® 500.
A commercial-grade mower for professionals who want rugged durability without sacrificing features and performance. Better seating, better tires, better mowing deck, and a better transmission make the Pro-Turn 500 the better choice.
FEATURES
- A premium quality Kawasaki FX V-twin engine featuring a multi-stage remote canister heavy duty air filter system and cast-iron cylinder liners. 60” & 72” Machines are EFI Fuel injected.
- PARKER HTG Transaxles 16cc pumps.
- Suspension seat is adjustable and has the new addition of a low-profile seat mechanism for added comfort.
- Fully welded tubular frame. One glance and you can see its strength and ruggedness. Its wide front rail distributes weight for superior balance. Also supports the deck lift for easy engagement. Includes a limited lifetime warranty.
- Offers 19 cutting positions, ranging from 25mm – 140mm, to make your lawn look its best.
- Foot-Operated deck lift.
- X-FACTOR® 3 Deck The deck has been completely redesigned for better grass dispersion. Its new look is constructed from 7-gauge steel to deliver years of solid performance.
- Forged Aluminium cutter spindles with sealed ball bearings.
Available in 52”, 60” & 72” Cutting Decks.
| Basic Information | |
|---|---|
| Designed For | Professionals, Government |
| Powered By | Petrol Engine |
| Engine Specifications | |
| Displacement (cc) | 852cc (52"), 999cc (60" & 72") |
| Engine Brand | Kawasaki |
| Engine Model | FX850V (52"), FX1000V EFI (60" & 72") |
| Power Output (kW / hp) | 20.10 / 27.0 (52"), 29.98 / 38.5 (60" & 72") |
| Fuel System | Carburettor (52"), Fuel Injected (60" & 72") |
| Engine Type | 4-Stroke |
| Lubrication | Fully pressurised automotive-style oil pump w/spin-on oil filter |
| Drive System | |
| Drive System | Hydrostatic - Lever Control |
| Transmission | Parker HTG Series 16cc Pumps & 310cc Wheel Motors |
| Cruise Control | No |
| Diff Lock | n/a |
| Max. Forward Speed (km/h) | 24.1 |
| Max. Reverse Speed (km/h) | 9.7 |
| Chassis | |
| Chassis Type | Robotically welded frame assembly |
| Frame | - |
| R.O.P.S. Frame | Yes |
| Bumper Bar | - |
| Operation | |
| PTO Clutch | Electronic fingertip engagement allows you to engage & disengage the mowing deck saving you time and energy |
| Brakes | Automatic Parking Brake |
| Seat | High-back dial suspension with EVC Cushion seat belt, angle back adjust & arm rests |
| Other Specifications | |
| Front Tyres | 15.00 x 6.00 |
| Rear Tyres | 26.00 x 12.00 |
| Fuel Tank Capacity | 47.3 |
| Mowing Deck | |
| Cutting Width (cm / Inches) | 54", 60" or 72" |
| Deck Build | 7-gauge, floating, fabricated |
| Cutting Height Adjustments | 1.0 Inches to 5.5 Inches - 19 Positions |
| Anti Scalping Wheels | Front: 4 x Ball Type |
| Mulch Kit | Optional |
| Deck Spindles | 3 |
| Deck Pulleys | Split steel spindle pulley |
| Deck Attach/Removal | Tools Required |
| Deck Wash Port | No |
| Warranty | |
| Machine (Domestic Use) | 5 Years / 1500 hours |
| Machine (Commercial Use) | 5 Years / 1500 hours |
| Engine (Domestic use) | 3 Years |
| Engine (Commercial Use) | 3 Years |
