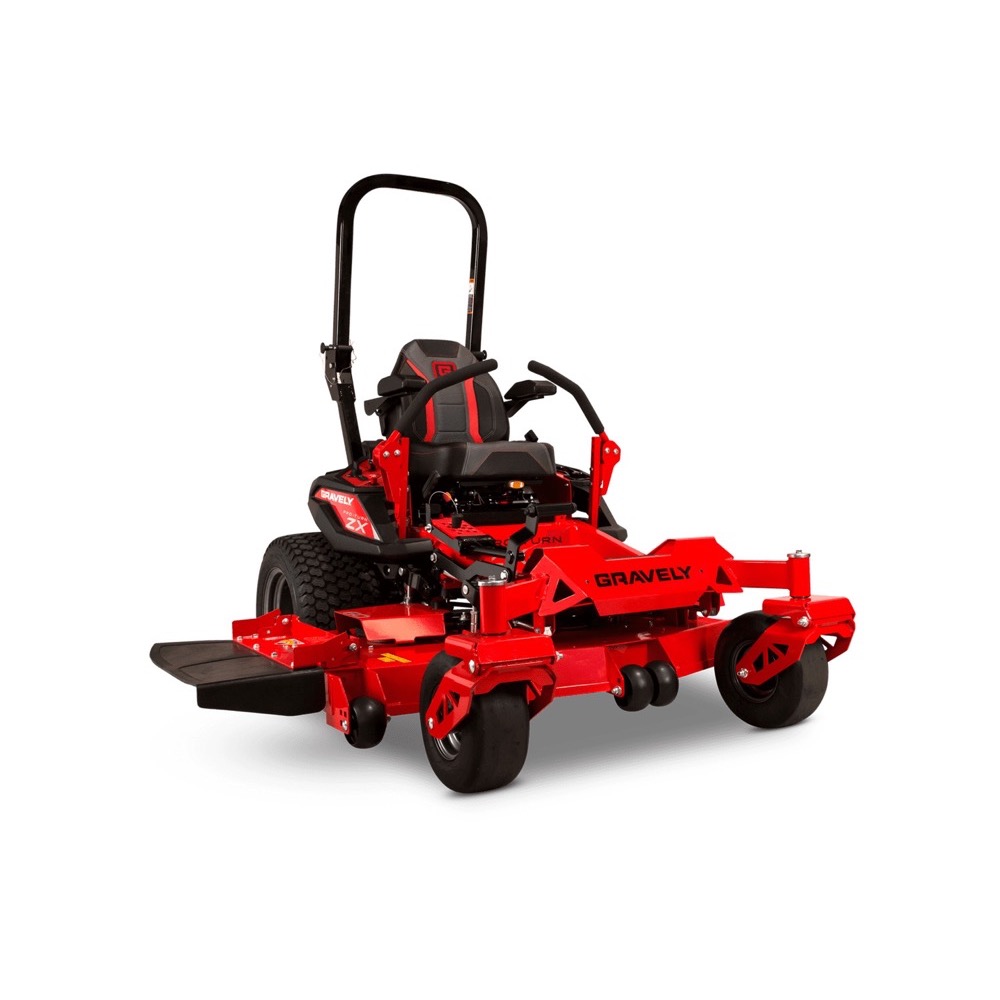

Gravely Pro-Turn ZX Zero Turn Mower
- SKU:
Price
$16,799.00
Ex GST: $15,271.82Available From
Macksville
Newcastle - Call to check availability Rutherford - Call to check availabilityNot Available Online Or At Your Local Store?
The Pro-Turn ZX delivers a great Gravely performance, at an affordable price point. Its solid construction can handle the toughest commercial jobs while leaving behind a beautifully manicured lawn.
It’s automotive-style tubular frame is unique to the mowing industry and increases durability by withstanding force from any direction.
This unit’s high-strength, premium frame is positioned with a lower centre of gravity to improve stability while mowing on slopes or hillsides.
The Pro-Turn ZX is also built with ZT-3200 transaxles that are heavy-duty and can handle higher speeds.
This unit is definitely a ‘big return on a small investment’ situation.
Available in 48”, 52” & 60” Cutting Decks.
| Basic Information | |
|---|---|
| Designed For | Land Owners, Farmers, Professionals, Government |
| Powered By | Petrol Engine |
| Engine Specifications | |
| Displacement (cc) | 726cc |
| Engine Brand | Kawasaki |
| Engine Model | FX691V (48" & 52""), FX730V (60") |
| Power Output (kW / hp) | 16.50 / 22 (48" & 52"), 17.60 / 23.5 (60") |
| Fuel System | Carburettor |
| Engine Type | 4-Stroke |
| Lubrication | Fully pressurised automotive-style oil pump w/spin-on oil filter |
| Drive System | |
| Drive System | Hydrostatic - Lever Control |
| Transmission | Dual Hyro-Gear™ ZT 3200 |
| Cruise Control | No |
| Diff Lock | n/a |
| Max. Forward Speed (km/h) | 13.6 |
| Max. Reverse Speed (km/h) | 6.4 |
| Chassis | |
| Chassis Type | Robotically welded frame assembly |
| Frame | - |
| R.O.P.S. Frame | No |
| Bumper Bar | - |
| Operation | |
| PTO Clutch | Electronic fingertip engagement allows you to engage & disengage the mowing deck saving you time and energy |
| Brakes | Automatic Parking Brake |
| Seat | High back with arm rests keeps you comfortable when mowing for extended periods. |
| Other Specifications | |
| Front Tyres | 13.00 x 6.50 |
| Rear Tyres | 22.00 x 10.00 |
| Fuel Tank Capacity | 18.8 |
| Mowing Deck | |
| Cutting Width (cm / Inches) | 48", 54" or 60" |
| Deck Build | 10-gauge, floating, fabricated |
| Cutting Height Adjustments | 1.5 Inches to 5.0 Inches - 15 position |
| Anti Scalping Wheels | Front: 4 x Ball Type |
| Mulch Kit | Optional |
| Deck Spindles | 3 |
| Deck Pulleys | Split steel spindle pulley |
| Deck Attach/Removal | Tools Required |
| Deck Wash Port | No |
| Warranty | |
| Machine (Domestic Use) | 4 Years / 750 hours |
| Machine (Commercial Use) | 4 Years / 750 hours |
| Engine (Domestic use) | 3 Years |
| Engine (Commercial Use) | 3 Years |
